MIL-M-82376B
3.3.1.3.2.1 (F) The requirements of 3.3.1.3.2 shall apply unless
otherwise specified and shall contain all data required in the event that the
training device is moved.
3.3.1.3.3 Installation information. (A,N) Instructions shall be provided
for planning the installation of the training device and shall include the
following:
a.
A floor plan diagram showing location of desirable positions for
each assembly.
b.
Precautions in the positioning of assemblies to prevent
interaction.
Installation considerations, such as short ground leads, effective
c.
bonding, and shielding requirements.
Information for attaching plugs to receptacles, wires to terminal
d.
boards, and for making connections to other related equipment, such
as interphones.
Data on any critical cord lengths, cable, assemblies, and linkages.
e.
f.
A trainer interconnecting cable list, in tabular form, listing all
the external cables installed between the equipments in the
training device (see table III).

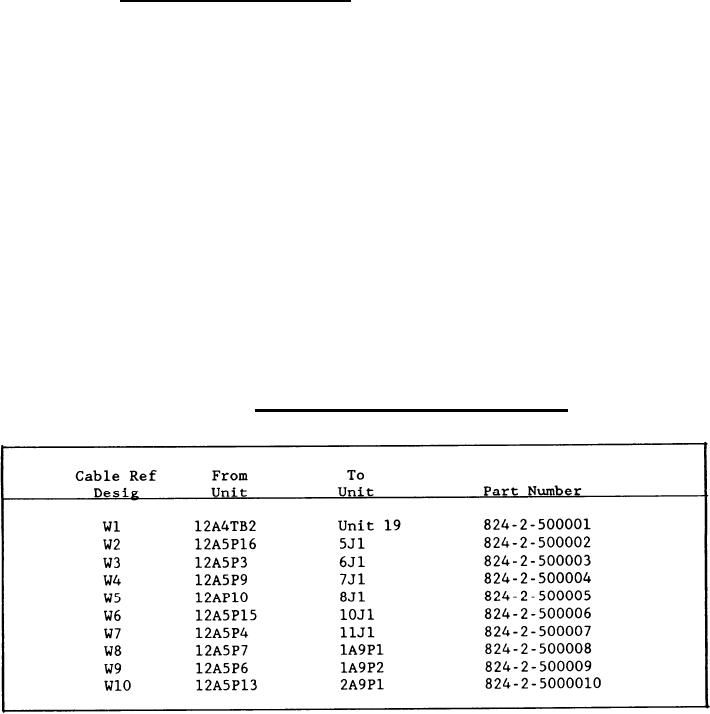

TABLE III.
Trainer interconnecting cable list.
3.3.1.3.3.1 (F) The requirements of 3.3.1.3.3 shall apply unless
otherwise specified and shall contain all data required in the event that the
training device is moved.
12
0023E
