MIL-DTL-24784-10 Training Aid Booklet \(Tab\) Requirements For Naval Ships SystemsThis specification sets forth requirements for the preparation of Training Aid Booklets \(TABs\) for use on naval ships \(see 6.2\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-DTL-24784/10C(NAVY)
Note: Sample arrangement only. Size and legibility requirements do not necessarily conform to minimum
specification requirements.

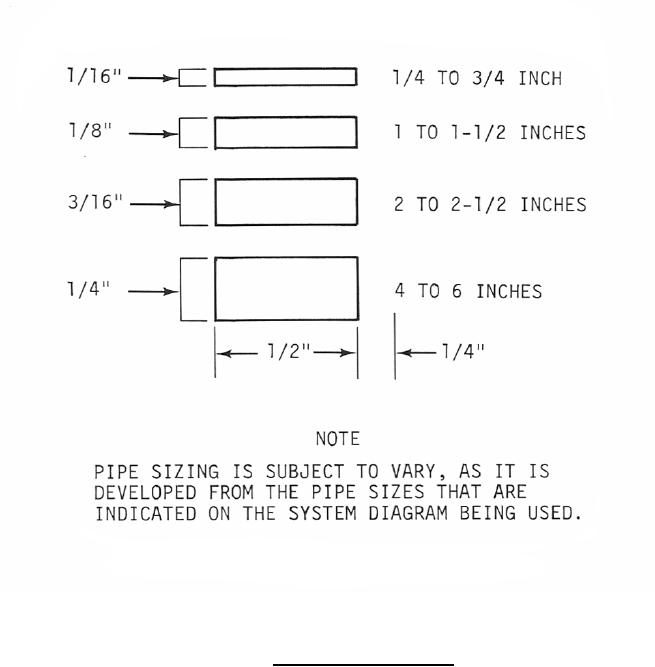

FIGURE 4. Recommended pipe size scale.
