MIL-DTL-22202 Aircraft Cross-Servicing Manuals, Technical, Preparation OfThis specification covers the requirements for the preparation of cross-servicing manuals for aircraft. It is intended for use by maintenance activities at airfields/ships, other than that to which the aircraft is assigned, according to an established operational aircraft cross-servicing requirement among member nations of the North Atlantic Treaty Organization \(NATO\) and the Air Standardization Coordinating Committee \(ASCC\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-22202D
NOTE: US Navy catapulting and arrested landing information for carrier-borne aircraft can
be obtained from:
Commander
Code 480000B150-3
Naval Air Warfare Center Aircraft Division
Highway 547
Lakehurst, NJ 08733-5037
t. Emergency Crash Handling. In the event of any emergency wherein a crash-damaged or
disabled aircraft must be removed, the procedures necessary to properly secure and safety the

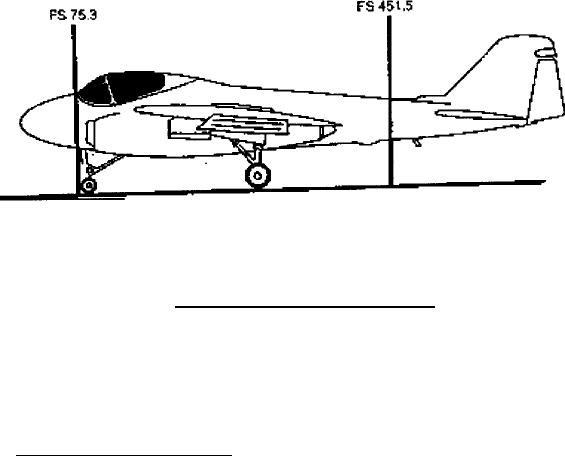

aircraft shall be specified. An illustration in the format of figure 1 shall be provided, locating the
fuselage structural hardpoints for hoisting the aircraft with "belly band" type fabric slings.
FIGURE 1. Crash handling structural hardpoints.
u. Helicopters Operating from Ships. The recommended performance parameters, illustrated
as necessary for takeoff and recovery on landing platforms of ocean going vessels, shall be
provided. Particular emphasis shall be given to the clearances required which shall be illustrated
in the format of figure 2 using a line drawing of the actual helicopter.
3.2.5.2.3 Chapter 3, flight line servicing. This chapter shall describe the specific
maintenance actions to be undertaken to satisfactorily complete Stage A aircraft cross-servicing.
Supporting illustrations shall be provided wherever necessary. The following shall be included:
a. Consumable Materials. A list of consumable materials with acceptable and emergency
alternatives shall be provided. The materials shall be identified by the appropriate NATO/ASCC
code numbers and/or other identifying national part numbers or specifications along with
cross-references to other member nations' designations.
8
